| 廠牌 |
ASUS華碩 |
| 產品型號 |
TUF GAMING B550M-PLUS |
| CPU |
Build in AMD AM4 Socket 3rd Gen AMD Ryzen™ 處理器 * |
| 晶片組 |
AMD B550 |
| 記憶體 |
- 3rd Gen AMD Ryzen™ Processors
- 4 x DIMM, 最高可支援到128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz 無緩衝區 記憶體 *
- Next Generation AMD Ryzen PRO Processors
- 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz 無緩衝區 Memory *
- 雙通道 記憶體架構
- ECC Memory (ECC mode) support varies by CPU.
*有關記憶體合格廠商清單（QVL）的相關資訊，請參閱 www.asus.com 網站或本使用手冊。 |
| 顯示晶片 |
1 x DisplayPort 1.2
1 x HDMI 2.1(4K@60HZ) |
| 多GPU支援 |
Supports AMD 2-Way CrossFireX Technology |
| 擴充槽 |
- 3rd Gen AMD Ryzen™ Processors
- 1 x PCIe 4.0 x16 (x16 mode)
- AMD B550 Chipset
- 1 x PCIe 3.0 x16 (x4 mode)
- 1 x PCIe 3.0 x1
* Support PCIe bifurcation for RAID on CPU function. |
| 資料儲存應用 |
- 總共支援 2 x M.2 插槽和 4 x SATA 6Gb/s 連接埠
- 3rd Gen AMD Ryzen™ Processors :
- 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
- AMD B550 Chipset :
- 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
- 4 x SATA 6Gb/s埠,
- 支援Raid 0, 1, 10
|
| 區域網路 |
Realtek RTL8125B 2.5Gb Ethernet
TUF LANGuard |
| 音效 |
- Realtek ALC S1200A 7.1 Surround Sound 高傳真音效 CODEC
- 支援 : Jack-detection, 插頭偵測, 多路音頻輸出輸入, 前面板插孔指定功能
- 音訊特色 :
- 光纖 S/PDIF 輸出埠位於背板
- Exclusive DTS Custom for GAMING Headsets.
- 音訊外蓋
- Audio Shielding
- Dedicated audio PCB layers
- 優質的日本音訊電容 |
| USB連接埠 |
- 背面 USB 連接埠 ( 共 8 個 )
- 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C™)
- 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
- 2 x USB 2.0 port(s)(2 x Type-A)
- 正面 USB 連接埠 ( 共 6 個 )
- 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
- 4 x USB 2.0 port(s)(4 x Type-A)
|
| 軟體功能 |
- ASUS Exclusive Software
- Armoury Crate
- Aura Creator
- Aura Sync
- AI Noise Cancelling Microphone
- AI Suite 3
- Performance And Power Saving Utility
- TurboV EVO
- EPU
- Digi+ VRM
- Fan Xpert 2+
- EZ update
- TUF GAMING CPU-Z
- AI Charger

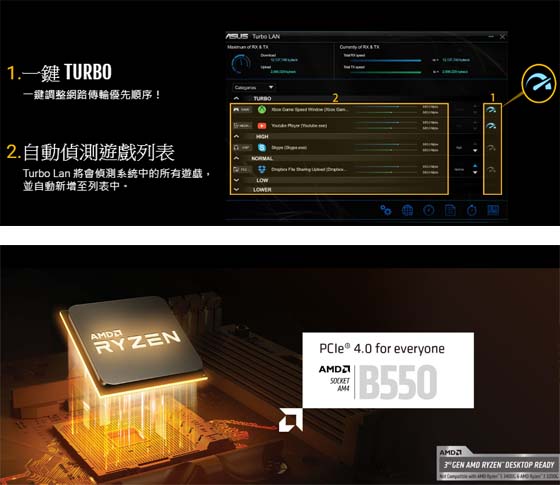

- ASUS Turbo LAN
- DAEMON Tools
- DTS Custom for GAMING Headsets
- Norton Anti-virus software (Free Trial for 60 days)
WinRAR
- UEFI BIOS
- ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode |
| ASUS Special Features |
- ASUS TUF PROTECTION

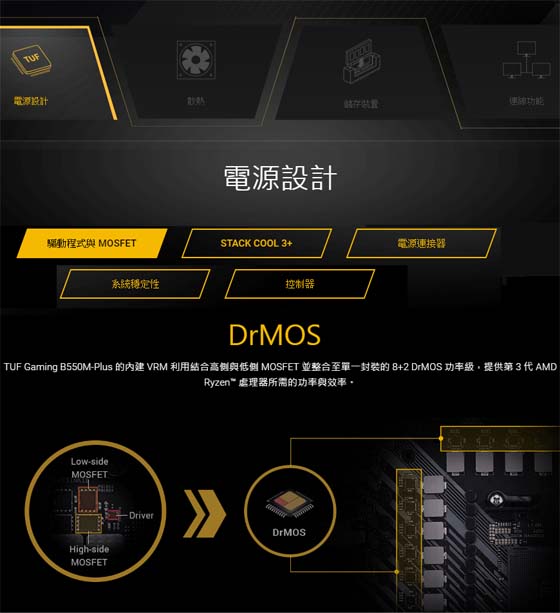

- ASUS DIGI+ VRM (Digital power design with Dr. MOS)
- ASUS Enhanced DRAM Overcurrent Protection
- ASUS ESD Guards
- TUF LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot
- ASUS Stainless-Steel Back I/O
- ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- ASUS Q-Slot
- ASUS Thermal Solution
- Aluminum M.2 heatsink
- ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Procool
- AURA Sync
- Standard RGB headers
- Addressable Gen 2 RGB header |

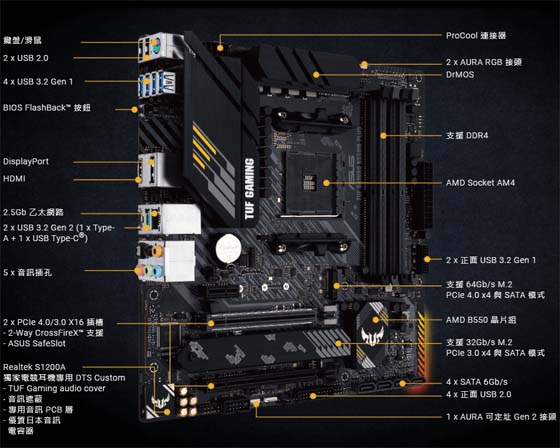

| 後面板輸出端子 |
- 1 x PS/2 鍵盤/滑鼠連接埠
- 1 x DisplayPort
- 1 x HDMI
- 1 x LAN (2.5G) 連接埠
- 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C™)
- 4 x USB 3.2 Gen 1 (藍色) Type-A
- 2 x USB 2.0
- 1 x 光纖 S/PDIF 輸出
- 5 x 音訊插孔
- 1 x USB BIOS Flashback™ Button(s)
|
| 內建 I/O 連接孔 |
- 1 x CPU 風扇接頭
- 1 x CPU OPT Fan connector(s)
- 2 x 機殼風扇接頭
- 2 x Aura RGB Strip Headers
- 1 x Addressable Gen 2 header(s)
- 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
- 2 x USB 2.0 接頭支援額外的 4 USB 2.0 連接埠
- 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 4.0 x 4 mode)
- 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
- 1 x SPI TPM header
- 4 x SATA 6Gb/s 接頭
- 1 x 24-pin EATX 電源接頭
- 1 x 8-pin EATX 12V Power connectors
- 1 x 前面板音訊接頭 (AAFP)
- 1 x Clear CMOS 跳線
- 1 x System panel connector
- 1 x COM port header
- 1 x Speaker connector
|
| 配件 |
- 使用者手冊
- I/O 擋板
- 2 x Serial ATA 6.0Gb/s 纜線
- 1 x TUF Certification 卡
- 1 x Supporting DVD
- 1 x TUF Gaming Sticker
- 1 x M.2 SSD screw package(s)
- 1 x M.2 Rubber Package(s)
|
| BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
| 管理能力 |
WOL by PXE |
| 作業系統 |
Windows® 10 64-bit |
| 主機板尺寸 |
mATX 主機板尺寸
9.6 吋 x 9.6 吋 ( 24.4 公分 x 24.4 公分 ) |
| 保固 |
三年保固
※保固期有可能會變更或終止，恕不另行通知，以原廠公佈為準。
※以上規格資料或內附配件若有變更或任何錯誤，恕不另行通知，以原廠所公佈資料為準。 |
