| 品牌 |
ASUS華碩 |
| 型號 |

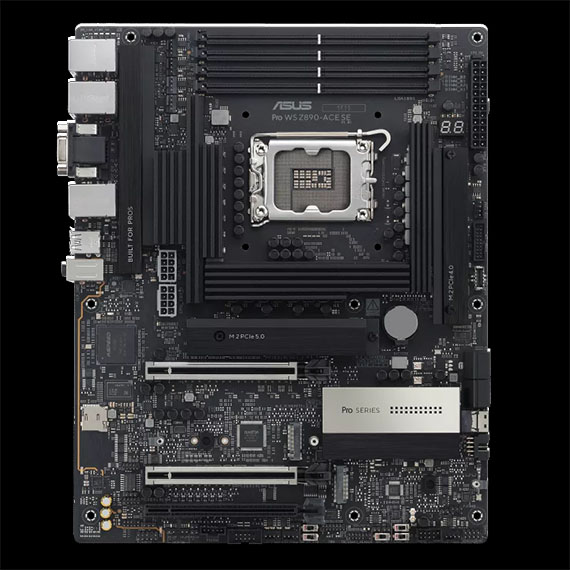

Pro WS Z890-ACE SE |
| CPU |
- Supports Intel® Core™ Ultra Processors (Series 2) , LGA1851
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
|
| Chipset |
Intel® Z890 Chipset |
| Memory |
- 4 x DIMM slots, max. 256GB, DDR5
- Support up to 9066+MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM)*
- Dual channel memory architecture
- Supports DIMM Fit
- Supports DIMM Flex
- Supports Intel® Extreme Memory Profile (XMP) memory module
- ASUS Enhanced Memory Profile III (AEMP III)
|
| Graphics |
- 1 x HDMI™ port**
- 1 x Intel® Thunderbolt™ 4 port (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs***
- 1 x VGA port from AST2600
|
| Expansion Slots |
- Expansion Slots Intel® Core™ Ultra Processors (Series 2)
- 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)
- Intel® Z890 Chipset
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
|
| Storage |
- Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports
- Intel® Core™ Ultra Processors (Series 2)
- M.2_1 slot (Key M), type 2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe4.0 x4 mode)
- Intel® Z890 Chipset**
- M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- SlimSAS_1 slot supports PCIe 4.0 x4 mode or up to 4 SATA devices via a transfer cable. The cable is purchased separately.
- 4 x SATA 6Gb/s ports
|
| Ethernet |
1 x Marvell® AQtion 10Gb Ethernet
1 x Intel® 2.5Gb Ethernet
1 x Realtek 1Gb Ethernet dedicated for AST2600 |
| USB |
- Rear USB (Total 8 ports)
- 1 x Thunderbolt™ 4 port (1 x USB Type-C®)
- 1 x USB 20Gbps port (1 x USB Type-C®)
- 6 x USB 10Gbps ports (6 x Type-A)
- Front USB (Total 7 ports)
- 1 x USB 20Gbps connector (supports USB Type-C®)
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 2 x USB 2.0 headers supports 4 additional USB 2.0 ports
|
| Audio |
- Audio"Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- - Impedance sense for front and rear headphone outputs
- - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- - Supports up to 32-Bit/192 kHz playback*"
- Audio Features
- - Audio Shielding
- - Premium audio capacitors
|

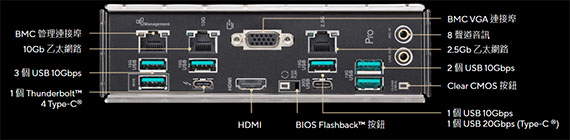

| Back Panel I/O Ports |
- Back Panel I/O Ports 1 x Thunderbolt™ 4 USB Type-C® port
- 1 x USB 20Gbps port (1 x USB Type-C®)
- 6 x USB 10Gbps ports (6 x Type-A)
- 1 x HDMI™ port
- 1 x Marvell® AQtion 10Gb Ethernet port
- 1 x Intel® 2.5Gb Ethernet port
- 1 x Realtek 1Gb Ethernet dedicated for AST2600
- 2 x Audio jacks
- 1 x BIOS FlashBack™ button
- 1 x Clear CMOS button
|

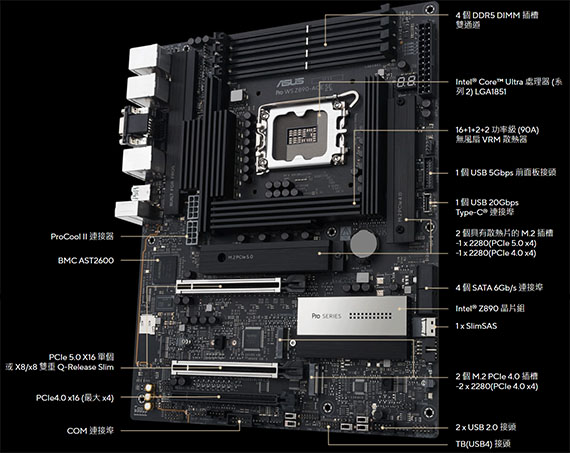

| Internal I/O Connectors |
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 5 x 4-pin Chassis Fan headers
- 1 x W_PUMP+ header
- Power Related
- 1 x 24-pin Main Power connector
- 2 x 8-pin +12V CPU Power connector
- Storage Related
- 4 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- 1 x SlimSAS port
- USB
- 1 x USB 20Gbps connector (supports USB Type-C® )
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 2 x USB 2.0 header supports 4 additional USB 2.0 ports
- Miscellaneous
- 1 x Chassis Intrusion header
- 1 x COM Port header
- 1 x CPU Over voltage jumper
- 1 x Front Panel Audio header (F_AUDIO)
- 1 x 10-1 pin Front System Panel header
- 1 x Thermal Sensor header
- 1 x Thunderbolt™ (USB4®) header
|
| Special Features |
- ASUS 5X PROTECTION III
- - DIGI+ VRM (- Digital power design with DrMOS)
- - ESD Guards
- - LANGuard
- - Overvoltage protection
- - SafeSlot Core+
- - Stainless-steel back I/O
- ASUS Q-Design
- - M.2 Q-Latch
- - Q-Release Slim (with PCIe SafeSlot)
- - Q-Code
- - Q-Connector
- - Q-DIMM
- - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- - Q-Slot
- ASUS Thermal Solution
- - M.2 heatsink
- - VRM heatsink design
- ASUS EZ DIY
- - BIOS FlashBack™ button
- - BIOS FlashBack™ LED
- - Clear CMOS button
- - CPU Socket lever protector
- - ProCool II
- - SafeSlot
- - SafeDIMM
- Bespoke Motherboard Design & Business Focused Features
- - 24/7 reliability
- - Overcurrent protection
|
| Software Features |
- ASUS Exclusive Software
- Armoury Crate
- - Fan Xpert 4
- - Power Saving
- ASUS DriverHub
- TurboV Core
- ASUS CPU-Z
- Adobe Creative Cloud (Free Trial)
- Norton 360 Deluxe (60 Days Free Trial)
- WinRAR (40 Days Free Trial)
- UEFI BIOS
- AI Overclocking Guide
- ASUS EZ DIY
- - ASUS CrashFree BIOS 3
- - ASUS EZ Flash
- - ASUS MyHotkey
- NPU Boost
|
| Remote Management Features |
- IT Management software supported
- - ASUS Control Center Express(ACCE)
- BMC Related
- 1 x BMC switch
- 1 x BMC debug UART header
- 1 x BMC LAN fixed IP switch
- 1 x IPMI switch
- 1 x Message LED header
- 1 x microSD card socket
- 1 x Location LED header
- 1 x Location button header
- 1 x PSU_SMB header
- 1 x SMART_PSU switch
- 1 x VGA switch
- 1 x VPP_I2C header
- BMC LED Design
- - 1 x BMC LED
|
| BIOS |
256 Mb Flash ROM UEFI AMI BIOS(text-based) |
| Manageability |
WOL by PME, PXE |
| Accessories |
- Cables
- 2 x SATA 6Gb/s cables
- Miscellaneous
- 1 x AMI license sticker
- 1 x I/O shield
- 2 x M.2 Q-Latch packages
- 2 x M.2 rubber packages
- 1 x Q-connector
- Documentation
- 1 x ACC Express activation key card
- 1 x Quick start guide
|
| Operating System |
Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later) |
| Form Factor |
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| 保固 |
3年 |
