| 廠牌 |
ASUS華碩 |
| 型號 |
ROG STRIX B850-A GAMING WIFI |
| CPU |
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
|
| 晶片組 |
AMD B850 Chipset |
| 記憶體 |
- 4 x DIMM slots, max. 192GB, DDR5
- Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
- ECC and Non-ECC, Un-buffered DIMM
- Dual channel memory architecture
- Supports AMD Extended Profiles for Overclocking (EXPO™)
- ASUS Enhanced Memory Profile (AEMP)
|
| 顯示晶片 |
1 x DisplayPort
1 x HDMI™ port
- Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
|
| 擴充槽 |
- AMD Ryzen™ 9000 & 7000 Series Desktop Processors
- 1 x PCIe 5.0 x16 slot with Q-Release Slim
- AMD Ryzen™ 8000 Series Desktop Processors
- 1 x PCIe 5.0 x16 slot with Q-Rlease Slim (supports PCIe 4.0 x8 or x4 mode)*
- AMD B850 Chipset
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
|
| 資料儲存應用 |
- Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
- AMD Ryzen™ 7000 & 9000 Series Desktop Processors
- M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode)
- M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
- AMD Ryzen™ 8000 Series Desktop Processors
- M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode)
- M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4/x2 mode)*
- AMD B850 Chipset
- M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4)**
- M.2_4 (Key M), type 2280 (supports PCIe 4.0 x4)
- 2 x SATA 6Gb/s ports
- AMD RAIDXpert2 Technology
- Ryzen™ 9000 Series Processors: RAID 0/1/5/10
- Ryzen™ 8000 Series Processors: RAID 0/1
- Ryzen™ 7000 Series Processors: RAID 0/1/10
|
| 區域網路 |
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
|
| Wireless & Bluetooth |
- Bluetooth
- Wi-Fi 7
- 2x2 Wi-Fi 7 (802.11be)
- Supports 2.4/5/6GHz frequency band
- Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
- Bluetooth® v5.4
- For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
- For Windows 10, only Wi-Fi 6 is supported.
|
| USB連接埠 |
- Rear USB (Total 10 ports)
- 1 x USB 20Gbps port (1 x USB Type-C®)
- 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
- 4 x USB 5Gbps ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- Front USB (Total 7 ports)
- 1 x USB 10Gbps connector (supports USB Type-C®)
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- * USB Type-C® power delivery output: max. 5V/3A
|
| 音效 |
- ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
- Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
|

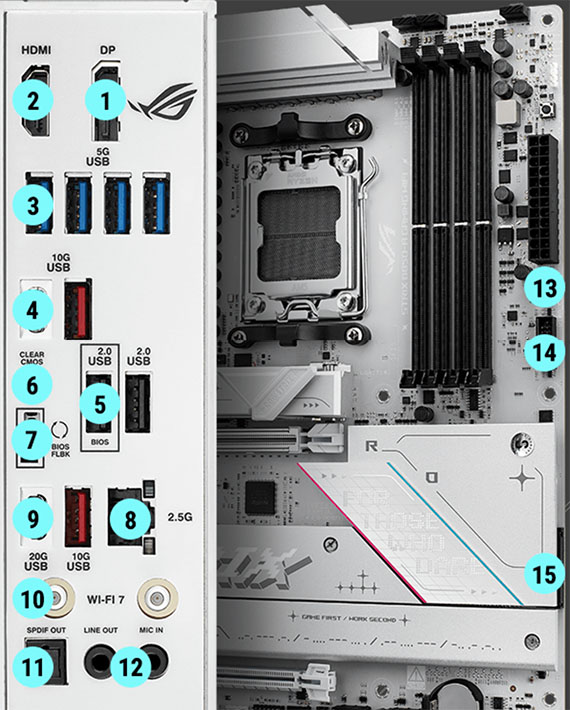

| 後面板輸出端子 |
- 1 x USB 20Gbps port (1 x USB Type-C®)
- 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
- 4 x USB 5Gbps ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x DisplayPort
- 1 x HDMI™ port
- 1 x Wi-Fi module
- 1 x Intel® 2.5Gb Ethernet port
- 2 x Audio jacks
- 1 x Optical S/PDIF out port
- 1 x BIOS FlashBack™ button
- 1 x Clear CMOS button
|
| 內建 I/O 連接孔 |
- Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
- Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
- Storage Related
4 x M.2 slots (Key M)
2 x SATA 6Gb/s ports
- USB
1 x USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
- Miscellaneous
3 x Addressable Gen 2 headers
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Power button
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header
|
| Special Features |
- Extreme Engine Digi+
- 5K Black metallic capacitors
- ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
- ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
- Aura Sync
- Addressable Gen 2 headers
|
| 軟體功能 |
- ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
- ASUS Exclusive Software
- Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4
- GameFirst
- HWiNFO
- Power Saving
- ASUS DriverHub
- ASUS GlideX
- TurboV Core
- Adobe Creative Cloud (Free Trial)
- Norton 360 for Gamers (60 Days Free Trial)
- WinRAR (40 Days Free Trial)
- UEFI BIOS
- ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
|
| BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
| 管理能力 |
WOL by PME, PXE |
| 作業系統 |
Windows 11 |
| 主機板尺寸 |
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
|
| 保固 |
3年 |
|
※保固期有可能會變更或終止，恕不另行通知，以原廠公佈為準。
※以上規格資料或內附配件若有變更或任何錯誤，恕不另行通知，以原廠所公佈資料為準。 |
