| 廠牌 |
ASUS華碩 |
| 型號 |
ROG STRIX B850-I GAMING WIFI |
| CPU |
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| 晶片組 |
AMD B850 Chipset |
| 記憶體 |
- 2 x DIMM slots, max. 96GB, DDR5
- Supports up to 8400+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
- ECC and Non-ECC, Un-buffered DIMM
- Dual channel memory architecture
- Supports AMD Extended Profiles for Overclocking (EXPO™)
- ASUS Enhanced Memory Profile (AEMP)
|
| 顯示晶片 |
1 x HDMI™ port
1 x USB 10Gbps ports support USB Type-C® display outputs
|
| 擴充槽 |
- AMD Ryzen™ 9000 & 7000 Series Desktop Processors
- 1 x PCIe 5.0 x16 slot with Q-Release Slim
- AMD Ryzen™ 8000 Series Desktop Processors
- 1 x PCIe 4.0 x16 slot with Q-Rlease Slim
|
| 資料儲存應用 |
Total supports 2 x M.2 slots and 2 x SATA 6Gb/s ports
AMD Ryzen™ 7000 & 9000 Series Desktop Processors
M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode)
M.2_2 (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode)
M.2_2 (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| 區域網路 |
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
|
| Wireless & Bluetooth |
- Wi-Fi 7
- 2x2 Wi-Fi 7 (802.11be)
- Supports 2.4/5/6GHz frequency band
- Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
- Bluetooth® v5.4
|
| USB連接埠 |
- Rear USB (Total 8 ports)
- 1 x USB 20Gbps port(s) (1 x USB Type-C®)
- 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®)
- 2 x USB 2.0 port(s) (2 x Type-A)
- Front USB (Total 5 ports)
- 1 x USB 10Gbps
- 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
- 1 x USB 2.0 header(s) support(s) 2 additional USB 2.0 ports
- USB Type-C® power delivery output: max. 5V/3A
|
| 音效 |
- ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
- Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
|

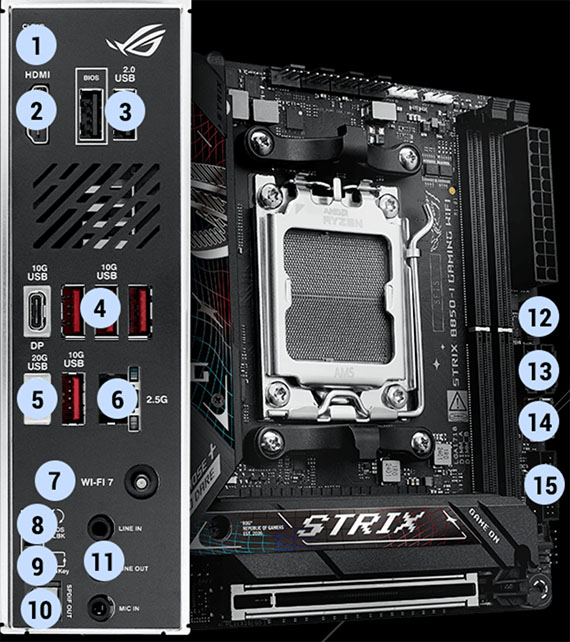

| 後面板輸出端子 |
- 1 x USB 20Gbps port(s)
- 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C® with DP Alt mode)
- 2 x USB 2.0 port(s) (2 x Type-A)
- 1 x HDMI™ port
- 1 x Wi-Fi module
- 1 x Intel® 2.5Gb Ethernet port
- 3 x Audio jacks
- 1 x Optical S/PDIF out port
- 1 x BIOS FlashBack™ button
- 1 x Clear CMOS button
- 1 x FlexKey button
|
| 內建 I/O 連接孔 |
- Fan and Cooling Related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin Extra Flow Fan header
- 1 x 4-pin AIO Pump header
- 4 x 4-pin Chassis Fan headers
- Power Related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V CPU Power connector
- Storage Related
- 2 x M.2 slots (Key M)
- 2 x SATA 6Gb/s ports
- USB
- 1 x USB 10Gbps connector (supports USB Type-C®)
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 1 x USB 2.0 headers support 4 additional USB 2.0 ports
- Miscellaneous
- 2 x Addressable Gen 2 headers
- 1 x CPU Over voltage jumper
- 1 x Front Panel Audio header (F_AUDIO)
- 1 x 10-1 pin Front System Panel header
- 1 x Thermal Sensor header
|
| Special Features |
- Extreme Engine Digi+
- 5K Black metallic capacitors
- ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
- ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
- Aura Sync
- Addressable Gen 2 headers
|
| 軟體功能 |
- ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
- ASUS Exclusive Software
- Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4
- GameFirst
- HWiNFO
- Power Saving
- ASUS DriverHub
- ASUS GlideX
- TurboV Core
- Adobe Creative Cloud (Free Trial)
- Norton 360 for Gamers (60 Days Free Trial)
- WinRAR (40 Days Free Trial)
- UEFI BIOS
- ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
|
| BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
| 管理能力 |
WOL by PME, PXE |
| 配件 |
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 backplate Q-Latch package(s)
1 x M.2 Q-Slide package
1 x ROG key chain
1 x ROG Strix stickers
1 x M.2 backplate rubber package(s)
Documentation
1 x Quick start guide
|
| 作業系統 |
Windows 11 |
| 主機板尺寸 |
Mini-ITX Form Factor
17 cm x 17 cm
|
| 保固 |
3年 |
|
※保固期有可能會變更或終止，恕不另行通知，以原廠公佈為準。
※以上規格資料或內附配件若有變更或任何錯誤，恕不另行通知，以原廠所公佈資料為準。 |
